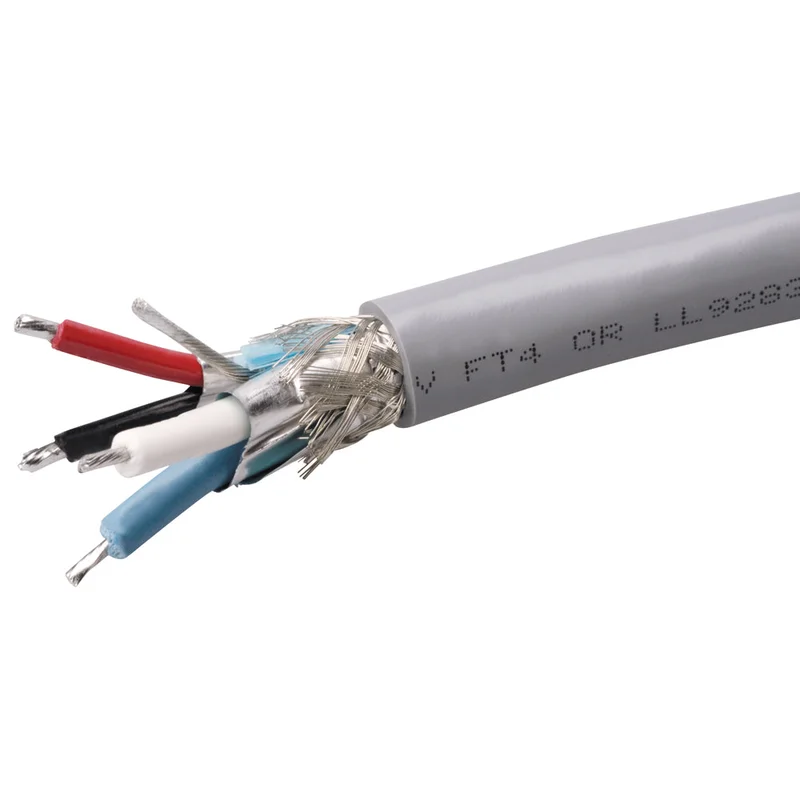

Maretron Mid Bulk Cable – 100 Meter – Gray

Original price was: $545.00.Current price is: $109.00.

SKU: 8095044501726 Category:

Description

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray –
    DG1 PVC/Blue –
    DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction:2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire:2×16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage:14 Amps
  • Color Code:Red/Black

    Data Pair

  • Wire:2×20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code:White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    Manufacturer : Maretron

    Manufacturer Part No: DG1-100C

    UPC : 873804003030
